DigiGate-700
for Windows
™ ®
1 - 9Publication TitleDigiGate-700
™
for Windows
®
- User’s Guide

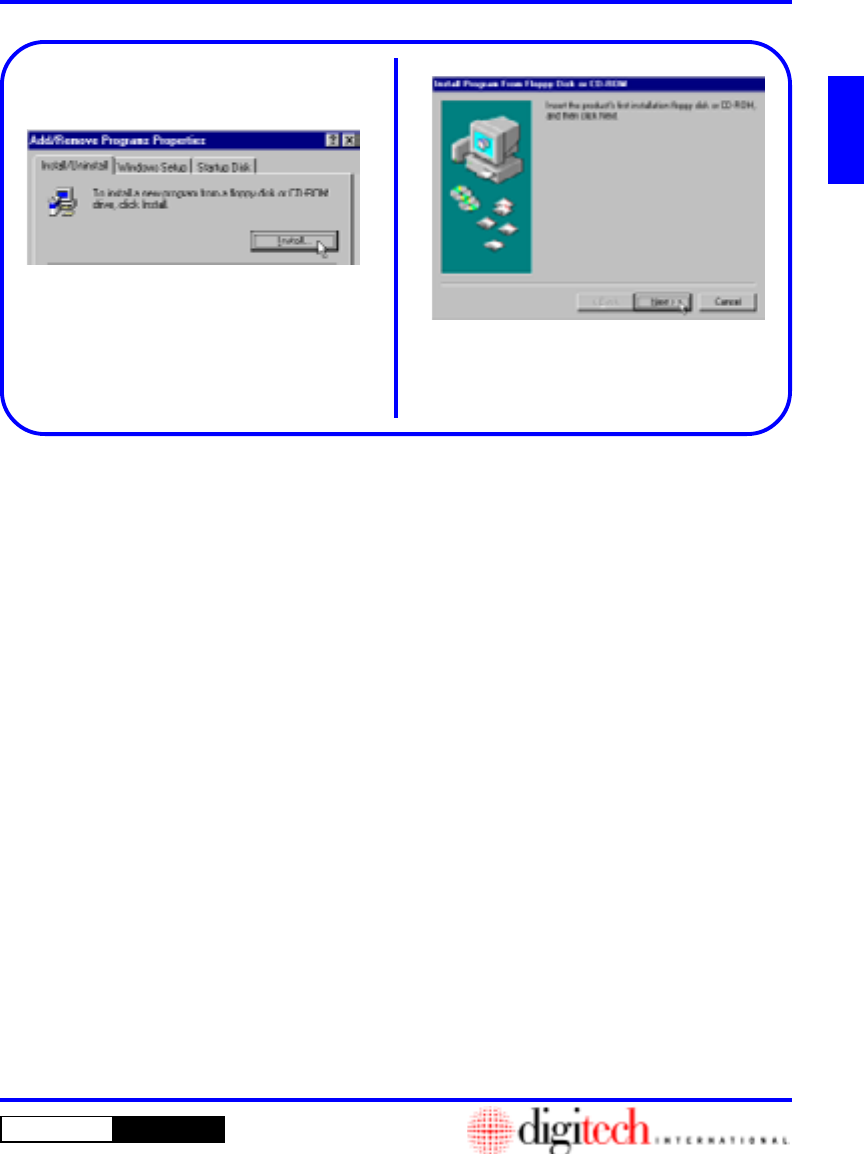

Figure 1-18
Figure 1-19
5. When the
Add/Remove Programs
window
opens, Select the
Install/Uninstall
tab.
6. Click the
Install
button. Figure 1-18.
7. When the screen shown in Figure 1-19 appears,
insert the Disk labeled “DigiGate-700 for
Windows Installation Disk #1” into the floppy
disk drive “A” or insert the CD-ROM into the
CD drive.
