3 - 62 Operating Instructions

DigiGate-700

for Windows

™ ®

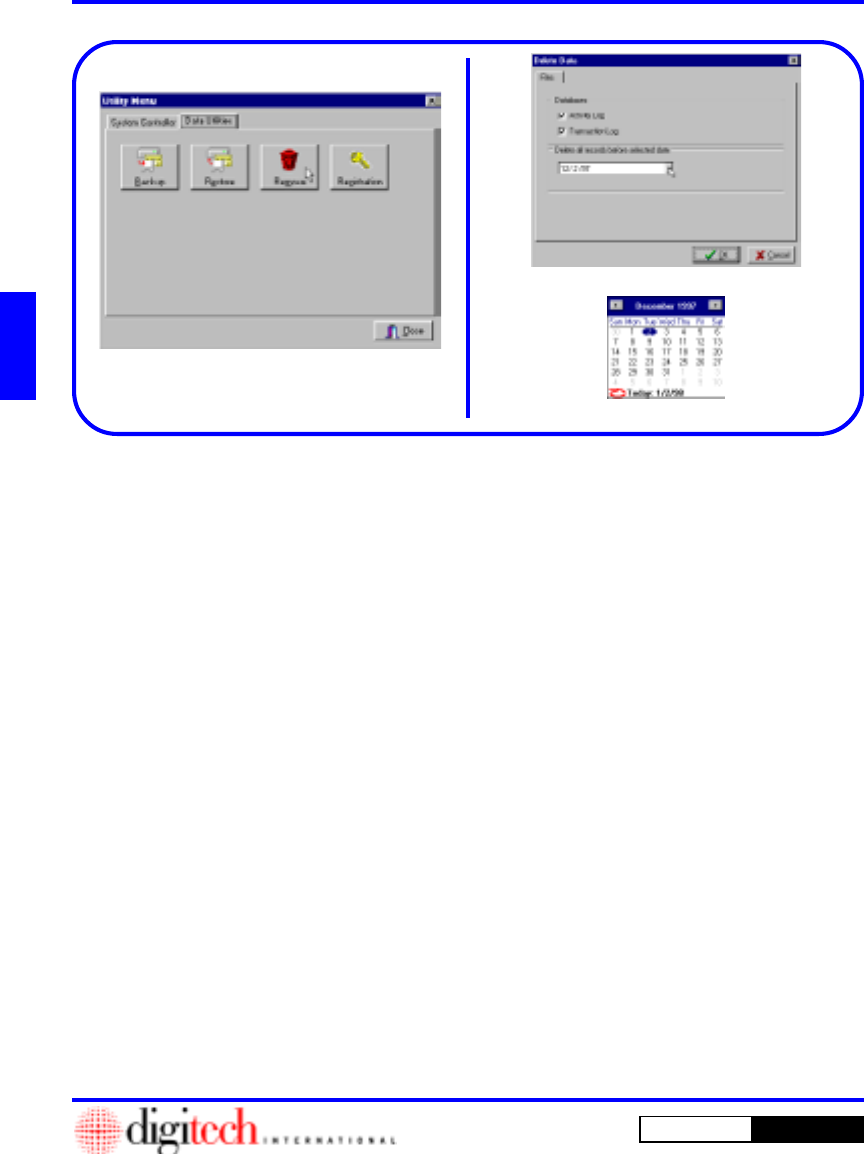

Figure 3-129

1. From the

Utility Menu

with the

Data Utilities

tab active, Click on the

Remove

button.

Figure 3-129.

2. This will open the

Delete Data

window.

Figure 3-130.

3. You can Select (Check) or Deselect (Uncheck)

either of the databases,

Activity Log

Transaction Log

4. To change the date, select the month, day, or

year and type your choice or Click on the down

arrow to the right of the

Date

field.

Figure 3-130.

5. This will open the calendar. Figure 3-131. The

current date is shown at the bottom of the

window.

6. At the top of the window are left and right

arrow buttons. Click on these to change the

month, backward and forward, respectively.

7. Click on the correct day.

8. All records, up to and including the date chosen,

will be deleted.

Remove

Figure 3-130

Figure 3-131
